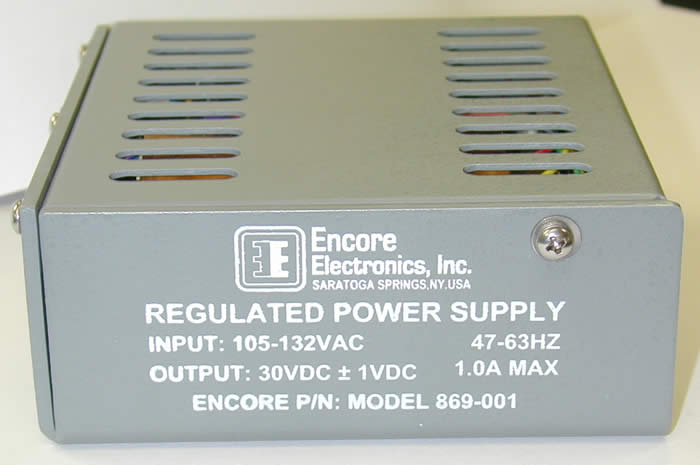

MODEL 869 AC/DC LINEAR POWER SUPPLY

Description

The Model 869 is a linear power supply suitable for applications requiring a noise-free environment
and tight regulation, and includes both overload and overvoltage protection. The unit has no forced-air requirements, using convection and conduction cooling at its mounting surface.



Specifications

Input: 105 to 132 VAC, 47-63Hz, 1.0A RMS at full load Output: 30VDC (floating), front panel adjustable ±1V               Load: 0 to 1ADC at 40°C Line and Load Regulation: ±2mV at "Sense" terminals. Ripple: 0.3mV peak-peak max Mechanical: 6.25"D x 5"W x 2"H (nominal) Service: 0°C to 55°C, with derating





CALL FOR PRICING
