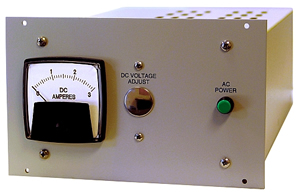

MODEL 856 AC/DC LINEAR POWER SUPPLY

Description

The Model 856 is a modular low noise series regulated power supply. Convection cooling contributes to its compact size and reliability.
It can also operate in a standby mode with a second unit.

Specifications

Output voltage: 30VDC, adjustable ±1.5V

Load: 0-2ADC, limited to 2.2A

Regulation: ±0.1%, line and load

Ripple: 5mV pk/pk

Output protection: Overvoltage and current
limited

Load sharing: Two-unit parallel operation
allows the highest voltage output to assume
the load

Input voltage: 115VAC ±10%, 50/60Hz

Service: 0°C to 60°C

Mechanical: 5.18”H x 8.34”W x 17”D
