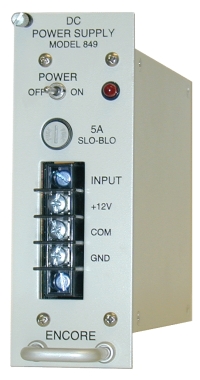

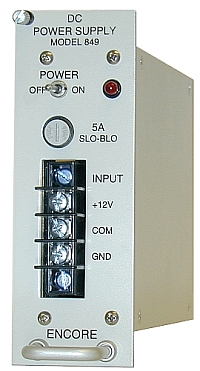

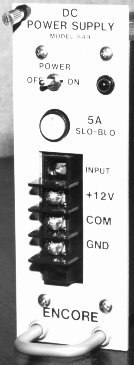

MODEL 849 BATTERY POWERED INSTRUMENTATION POWER SUPPLY

Description

The Model 849 is a DC/DC power supply module that plugs into Encore's 19" GPSC instrumentation rack, to allow battery-power operation. Typical mobile applications utilize a vehicle's cigarette lighter socket for the 12VDC source. This module can also reside in a rack normally operating from AC power, as a backup power source.
One signal conditioner module slot is occupied by the
Model 849.

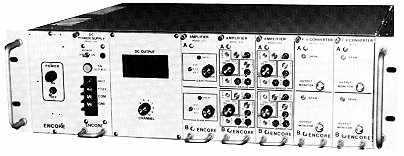

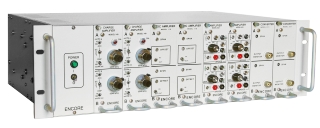

                               GPSC instrumentation rack



Specifications

Input: Volts: 10 to 15VDC, 12VDC nominal
  Current: 50mA no-load to 5ADC full load; depends on modules in rack

Output: Volts: ±24VDC nominal, unregulated
  Loads: +2ADC and -1ADC maximum
  Regulation: 18% max, no load to full load
  Ripple: 0.15V pk-pk at full load

Overload: Electronically protected against momentary short circuits; fuse protected against long term short circuits

Construction:

Aluminum enclosure; plugs into Encore GPSC rack adapters; supply is available for other Encore instrumentation racks as well
