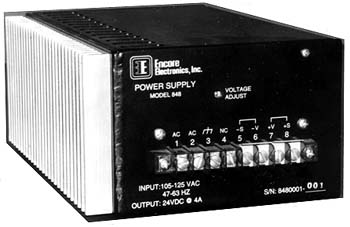

MODEL 848 INSTRUMENTATION POWER SUPPLY

Description

The Model 848 is a tightly-regulated linear power supply for applications requiring low ripple and noise. Heatsinks on the side of the supply provide adequate convection cooling for operation without the need for fans.

Specifications

Input: 105 to 125 VAC 50/60Hz, 2ARMS at full load

Output: 24VDC ±1.25V, 0 to 4ADC

Regulation: 0.1% max. over line and load variations

Ripple: 1mV RMS max

Sensing: Remote sensing regulates voltage at remote load point
Local sensing regulates voltage at power supply terminals
Supply shipped with shorting jumpers on terminal block to enable local sensing
Protection: Overcurrent Output electronically current limited at 4.5ADC, with foldback to less than 1ADC at short circuit
Input fuse 3A slow blow, internal

Controls: Front panel mounted trimpot adjusts output voltage

Connections: Terminal block for input power, output power, and sensing leads

Mechanical: 6" wide x 3.75" high x 10" deep aluminum case, with side-mounted heatsink
