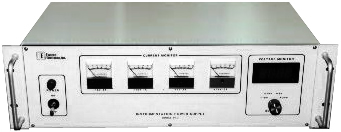

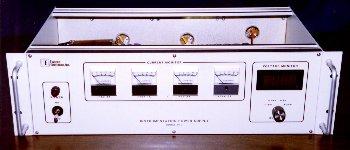

MODEL 847 QUAD INSTRUMENTATION POWER SUPPLY

DESCRIPTION

The Model 847 is a four-output linear regulated power supply for applications requiring low ripple and noise. Heatsinks on the rear of the supply provide adequate convection cooling for operation without unreliable fans.

SPECIFICATIONS

Input: 105 to 125 VAC 50/60Hz, 2A RMS at full load

Outputs:	5VDC, 0 to 3ADC
	±15VDC, 0 to 1ADC each
	24VDC, 0 to 5ADC
	All three supply commons are isolated from each other

Regulation: ±0.1% max. over line and load variations

Ripple: 1mV RMS max

Overload: Regulation stages have electronic current limiting allowing momentary short circuits without damage

Protection: Input power fuse, 5A slow blow

Meters: Dedicated analog ammeter per output, single digital voltmeter

Controls: Front panel mounted switch selects input to digital voltmeter

Connections: Rear panel terminal block for output power leads

Mechanical: 19" (standard rack mounting) wide x 5.25" high x 12" deep
