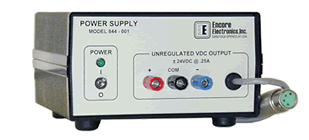

MODEL 844 DUAL POLARITY UNREGULATED POWER SUPPLY

Description

The Model 844 is an AC line power source for Encore's Model 502M four-channel, battery-powered instrumentation amplifier. This benchtop unit uses a toroidal power transformer to eliminate magnetic radiation and serves as a useful addition to any electronics laboratory.

Specifications

Input:  15VAC 50/60Hz @ 0.15A RMS max.

Output: ±22VDC nominal @ ±0.25V
            ±30VDC nominal @no load

Ripple: 1V pk to pk @±0.25ADC

Mechanical: 6" wide x 3.25" high x 6 1/4 " deep
