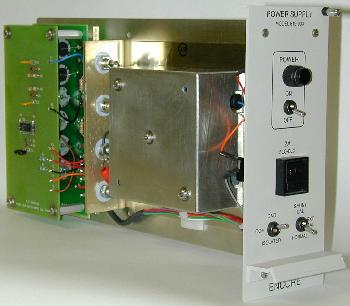

MODEL 819 RACK POWER SUPPLY

Description

The Model 819 is an unregulated rack power supply which provides operating power to modular amplifiers with on-board voltage regulators. Fully shielded toroidal power transformer eliminates magnetic field radiation.

Specifications

Input power: 115VAC ±10% 50/60Hz

Input current: 0.8A RMS at full load

Outputs: Unregulated ±24VDC nominal

Output current: 1.8A positive supply, 0.6A negative supply

Ripple: 1 volt peak-peak

Model 819-003: When used with Model 610 amplifiers in Model 4007-145 rack, also provides AC shunt calibration drive to amplifiers from rack External Cal signal input

Mechanical: 2.75"W x 6.75"H x 13"D, 5 pounds
