MODEL 711 UNIVERSAL HIGH/LOW PASS FILTER

Description

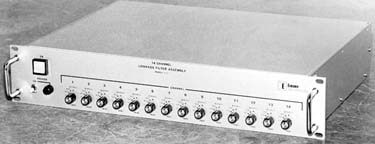

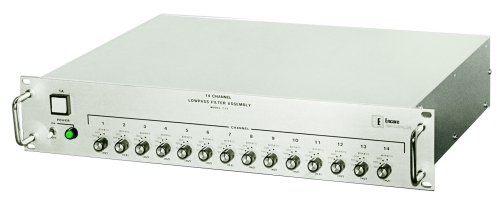

The Model 711 is a 14-channel instrumentation filter offering highpass or lowpass response on any channel. One of five frequency cutoffs is selected with a front panel rotary switch.

Specifications

Response: Each channel can be highpass or lowpass, depending on the filter module plugged into the rack

Frequency: Customer-specified -3dB frequencies from 0.3Hz to 30kHz for each of five positions per module, plus filter bypass

Attenuation: 24dB per octave (4 pole filter)

Response: Butterworth

Gain: 0dB ± 0.3dB in passband

Signal range: ±10V max

Input impedance: 100k ohms min

Connections: Rear-panel mounted BNC connectors for input and output signals

Input power: 115VAC ±10% 50/60Hz, 10VA

Mechanical: 19" wide (standard rack mounting) x 3.5" high x 14" deep
