Description

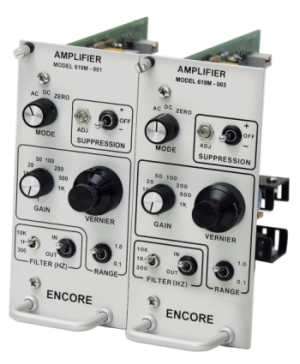

The Model 619M is a low cost differential amplifier useful in test environments where high CMRR
is desired. Encore's Model 227
F/V converter can also be used in

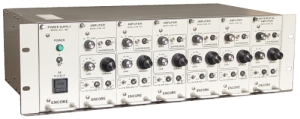

the six-module 4015-111 rack. An
AC power supply is built into the rack, and provides the required unregulated DC voltages to operate the modules. Single- and two-module benchtop carrying cases are also offered.

Input signal: ±10V max, x1.0 range; ±100V max., x0.1 range

Input impedance: 100k ohms min., each input

Operating modes: DC coupled, AC coupled, zero

Gain: Switch selectable 1, 2, 5, 10, 20, 50, 100, 200, 500, 1000, plus x1.0/x0.1 attenuator

Gain vernier: Continuously adjustable lockable ten-turn dial spans gain steps

CMRR: 75dB, DC to 70Hz

Frequency response: DC to 10kHz direct coupled, with filter out; 0.4Hz AC coupled response; Model 619M-002 frequency response 10kHz to 20kHz

Filter: Four-pole lowpass filter, switch-selectable for 300Hz, 1kHz, 20kHz and Out; other frequencies available on request

Input DC offset suppression: 0 to ±1.2V in x1.0 range, 0 to ±12V in x0.1 range

Signal output: ±10V max., 10mA peak load

Output noise: 10 microvolts RMS RTI max., DC to 20kHz at G=1000

Power: Unregulated ±24V from rack-mounted supply, +85mA/-45mA

Mechanical: 19"W x 5.25"H x 11"D, six-module rack adapter

Carrying case: two module desktop case
