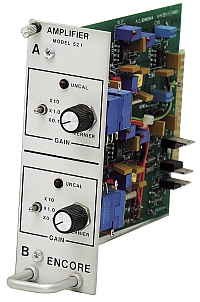

MODEL 521 LOW-COST PROXIMITOR CONDITIONER

Description

The Model 521 is a proximitor conditioner that plugs into Encore's 19" GPSC instrumentation rack, which accommodates up to eight modules (16 channels). An AC power supply is built into the rack, and provides the required unregulated DC voltages to operate the modules. The amplifier provides gain, noise filtering, and an RMS/DC output for any voltage input signal. Front panel gain range and fine adjustments are provided to match output to desired engineering units.

Specifications

Transducer excitation: -20VDC at 12mA per channel, on rear panel input connector

Input signal: Voltage, 0 to 70VRMS max

Gain: Three calibrated settings of 0.1, 1, and 10, plus 10:1 attenuator

Gain warning: Front panel LED warns if attenuator is away from CAL position

Frequency response: 10Hz to 100kHz, -3dB; header-mounted components allow adjustment of lowpass filter down to 100Hz

Signal output: ±10V max, 10mA peak load

Output noise: 5 microvolts RMS RTI max, DC to 20kHz at G=1000

DC Output: Tracks RMS value of AC output

Power: Unregulated ±24V from rack-mounted supply

Mechanical: 19"W x 5.25"H x 9"D, 8 module (16 channel) rack adapter, Model 4015 GPSC series

Carrying case: 2 module (4 channel) desktop case, Model 4017-106
