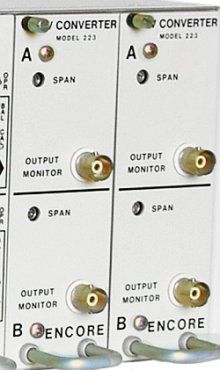

MODEL 223 FREQUENCY TO VOLTAGE CONVERTER

Features

• Two channels per module

• Single frequency range

• Input isolation to 1000 V

• Analog DC outputs

Description

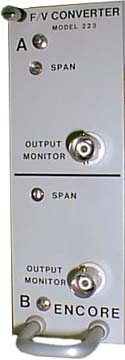

The Model 223 is a two channel F/V module that plugs
into Encore's 19" GPSC instrumentation rack, which accommodates up to eight modules (16 channels).
An AC power supply is built into the rack, and provides
the required unregulated DC voltages to operate the modules.

GPSC instrumentation rack

Specifications

Input: 0.025V peak to 100V peak

Input isolation: Transformer isolated
to 1000VRMS

Common mode rejection: 2.5VRMS DC

to 1kHz will not trigger the unit

Input comparator: Fixed threshold at 0.050
volts

Frequency range: Single range, factory
settable; standard is 10kHz fullscale

Calibration signal: Crystal oscillator
provides jumper-selected 100Hz, 500Hz,
1kHz, 5kHz, or 10kHz signal

Prescaler: Onboard jumper allows division
of input frequency by 2, 4, 8, or 16 before F/V conversion

Analog output: 0-10VDC fullscale output,
with front panel trimpot to adjust span

Connectors: Front panel BNC for output monitoring

Output noise: 2mV RMS max, DC to 20kHz

Mechanical: 19"W x 5.25"H x 9"D, eight module
(16 channel) rack adapter, Model 4015 GPSC series

Carrying case: Two module (four channel) desktop case, Model 4017-106
