MODEL 118 LOW-COST POTENTIOMETER CONDITIONER

Description

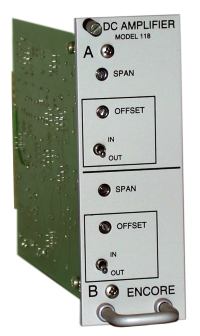

The Model 118 potentiometer conditioner is a two-channel
general purpose DC amplifier that plugs into Encore's 19" GPSC instrumentation rack, which accommodates up to eight modules (16 channels). The Model 118 is designed to process DC potentiometer voltages for feedback in control systems. Gain and switch-selectable offset allows a small portion of transducer stroke to be increased to a full scale signal.


Specifications
             Transducer excitation: 10VDC at 10ma per
             channel, on rear panel input connector


Input signal: Voltage, 0 to ±10VDC max

Gain: Two jumper-selectable calibrated settings
of 0.5-3 and 3-18, front-panel adjustable

Frequency response: DC to 40Hz, -3dB

Offset: Front panel ±8V (RTO) offset adjustment with in/out switch; disabled during CAL

Calibration: Precision voltage reference provides jumper-selectable fullscale or halfscale calibration level upon rear panel command

Signal output: ±10V max, 10mA peak load

Power: Unregulated ±24V from rack-mounted supply

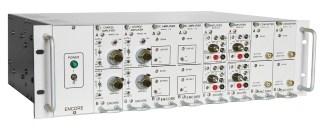

Mechanical: 19"W x 5.25"H x 9"D, 8 module (16 channel) rack adapter, Model 4015 GPSC series

Carrying case: 2 module (4 channel) desktop case, Model 4017-106
