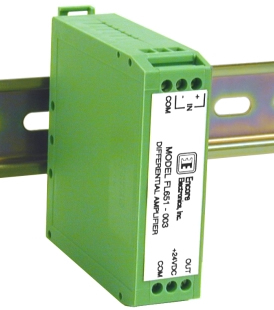

MODEL FL651 DIFFERENTIAL AMPLIFIER

Description

The Model FL651 Differential Amplifier is a minimal-feature fixed gain amplifier module. Differential input signals up to ±10V are buffered to the output terminal. The unit is mechanically and electrically compatible with Encore's other FlexiLine DIN-rail mounted instrumentation.

Specifications

Input: Voltage, ±10V peak

Output: ±10V, 5mA max

Input impedance: 1M ohm to common, each input

Output Impedance: 1k ohm

Frequency range: DC to 100Hz filtering, or customer specified range

Connections: Six wireclamp screw terminals accept wire sizes from 24-14 gauge

Mechanical: 2.9" x 3.1" x 0.9" plastic enclosure; mounts on standard 35mm DIN rail

Power: Unregulated 18-30VDC at 30mA max
