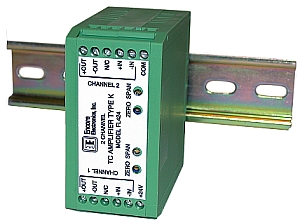

MODEL FL424 DUAL CHANNEL THERMOCOUPLE CONDITIONER

Description

The Model FL424 is a dual-channel thermocouple conditioner with cold junction compensation for type K thermocouples. A version for type J is also available. Front panel offset and span adjustments are provided for calibration. The unit is mechanically and electrically compatible with Encore's other FlexiLine DIN-rail mounted instrumentation.

Specifications

Input: Type K thermocouple wire

Output: 3mVDC per °F; 0 to 4.76VDC for -50°F to 1500°F

Output impedance: 10 ohms

Calibration points: -50°F 0.000 ±0.005V
1500°F 4.760 ±0.005V
Gain 133.55 ±0.2%

Open TC indication: Output goes to over 6VDC

Connections: Twelve wireclamp screw terminals accept wire sizes from 24-14 gauge

Mechanical: 2.9" x 3.1" x 1.6" plastic enclosure; mounts on standard 35mm DIN rail

Power: Unregulated 18-30VDC at 40mA max
