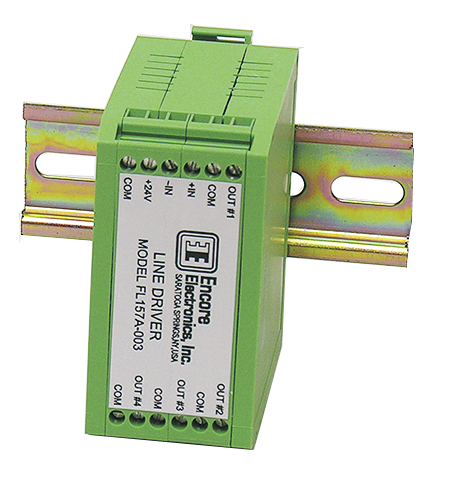

MODEL FL157A LINE DRIVER

DESCRIPTION The Model FL157A conditions magnetic speed pickup transducer signals and buffers them, allowing long transmission lines to be driven. Transformer coupling of the input signal allows up to 1000V RMS isolation between the transducer and monitoring equipment. Two or four identical outputs are available, and shorting any output will not affect the others. The unit is mechanically and electricallycompatible with Encore's other FlexiLine DIN-rail mounted instrumentation.

SPECIFICATIONS

Input:	Magnetic speed pickup, ±100mV to ±60V
Input isolation:	1000V RMS, transformer coupled
Output:	0-5V pulses ±0.25V at the input frequency

Output impedance:

50 ohms, each of 2 outputs or 1000 ohms, each of 4 outputs

Frequency range:

20Hz to 40kHz

Temperature:

0-60°C, 5-95% RH non-condensing

Connections:

Twelve wireclamp screw terminals accept wire sizes from 24-14 gauge (FL157A-005 has six terminals)

Power:

Unregulated 18-30VDC at 50mA max

Mechanical:

2.9" x 3.1" x 1.6" plastic enclosure; mounts on standard 35mm DIN rail (FL157A-005 is 0.9" thick)

Customized versions available upon request
