GENERAL PURPOSE SIGNAL CONDITIONING INSTRUMENTATION
Encore offers a line of General Purpose Signal Conditioning instrumentation
packaged as interchangeable two-channel plug-in modules. Encore's broad product line includes frequency to
voltage converters, strain gage amplifiers, accelerometer conditioners,
digital voltmeters, and DC power supplies. A common CAL input on the
rear of the rack is applied to all modules to allow calibration of
the entire rack. Calibration function depends on the GPSC modules installed; the
Model 633 will apply a shunt calibration resistor across the bridge;
the Model 149 will apply a reference charge source to the input.
| Model | Description | Outputs per channel |
| 118 | Potentiometer Conditioner module | One |
| 119 | LVDT/LVRT Conditioner module | One |
| 145 | Accelerometer Conditioner module | Two |
| 147 | DC LVDT Amplifier module | |
| 149 | Accelerometer Conditioner module | Two |
| 150 | Sinewave Frequency Multiplier/Divider unit | |
| 151 | Digital Voltmeter module | |
| 155 | Vibration Monitor | |
| 223 | Frequency to Voltage Converter module | One |
| 517 | Instrumentation amplifier module |
|
| 521 | Proximitor Conditioner | Two |
| 522 | Vibration Amplifier w/Integrator module | Two |
| 619M | Differential Amplifier module | |
| 633 | Strain Gage Amplifier module | One |
| 643 | Remote-controllable Precision Gain Amplifier | |
| 650 | Remote-controllable Differential Amplifier module | |
| 653 | High Common Mode Voltage Amplifier module | |
| 849 | DC Power Supply module |
![[GPSC Carrying Case image]](prodimages/m633cc.jpg)
- Modules with two outputs per channel typically have an RMS-to-DC output (indicating average vibration level) in addition to the AC output.
- If no two-output modules will be installed, a single-output rack or carrying case can be used.
- The Model 849 DC supply can be used as a primary battery power source, or as a backup to an AC powered rack.

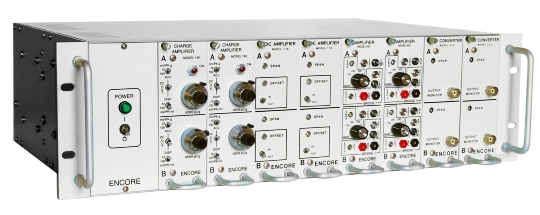

- Full eight-module (16-channel) 19" rack adapters and dual-module benchtop carrying cases are available, both with internal AC power supplies.
| 4017-103 | two-module Carrying Case, one output per channel |
| 4017-106 | two-module Carrying Case, two outputs per channel |
| 4015-106 | eight-module 19" Rack Adapter, one output per channel |
| 4015-106DP | eight-module 19" Rack Adapter, wired for 110/220VAC power |
| 4015-112 | eight-module 19" Rack Adapter, two outputs per channel |
| 4015-113 | eight-module 19" Rack Adapter, shielded wiring for Model 149 charge input |
| 4015-114 | eight-module 19" Rack Adapter, wired for Model 151 voltmeter module |
| 4015-115 | eight-module 19" Rack Adapter, BNC input & output for accelerometer use |
