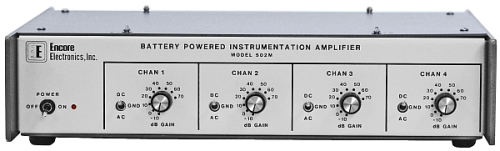

MODEL 502M FOUR-CHANNEL BATTERY-OPERATED INSTRUMENTATION AMPLIFIER
Description
The Model 502M is a general purpose battery-operated signal conditioning amplifier for use with strain gages, displacement sensors and accelerometers. Ideally suited for field application with four-channel, battery-operated tape recorders and similar instruments. Constant current diodes are provided for accelerometer applications.
Specifications
Gain: Ten calibrated position, 0.1 to 1000 in Log steps plus gain vernier
Bandwidth: DC to 20kHz (-3dB) with selectable AC-coupled low frequency cut offs at 16Hz
(100K input) and 1.6Hz (1M input)
Input impedance: 100K @ X1 input, 1M @0.1 input
Zero suppression: Readout on three digit dial with ±0.1, 1, 10, 20 and 200VDC FS settings
Signal phase: Either inverting or non-inverting
Noise: 20 microvolts RMS, referred to input
Output: ±10V @5mA max.
Rack input power: 115V AC ±10%, 50/60Hz
Mechanical: 19"W x 5.25H" x 11"D
