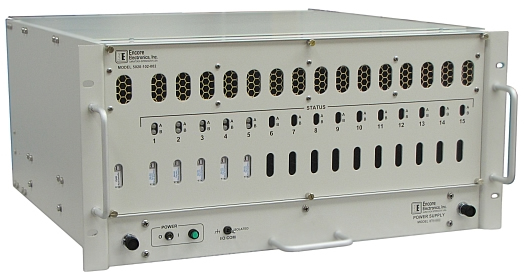

                                                                       Front view Model 5020-102

Description

The Model 5020-102 rack adapter offers complete remote control of all signal conditioner settings through an industry-standard Ethernet interface and remote web browser. No additional software needs to be installed to operate the system. In addition, the rack can be controlled by other software (such as LabView) via the Ethernet interface. The rack can accommodate a range of signal conditioning modules.

The Model 664 module is available for dynamic strain applications and the Model 665 combo module for static and dynamic measurements. For accelerometer inputs use the Model 176 dual charge amplifier module. Modules for other inputs such as pressure are offered.

All amplifier settings are stored in non-volatile memory in the rack, and restored at power-on. The rack uses an internal DC measurement system for its autozero and autobalance operations.

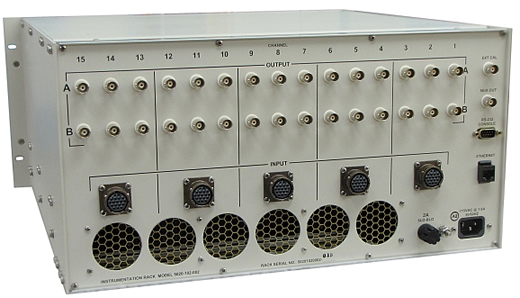

                                                                          Rear view Model 5020-102

Front panel controls: Power on/off switch and indicator; amplifier common isolate/ground switch

Module slots: 15 slots for signal conditioners, plus one slot on left side for rack controller

Rear panel connectors: 5 PT02A14-18S signal input (one per three slots); BNC analog output; BNC external calibration signal input; BNC mux signal output; Ethernet RJ45; RS232 nine-pin D male

Dimensions: 19” wide, 8.75” (5U) tall, 18” deep (plus handles and mating connectors)

Weight: 46 pounds with 15 amplifiers installed (shipping weight)

Power: 115VAC 50/60Hz, 150VA; 230VAC optional
