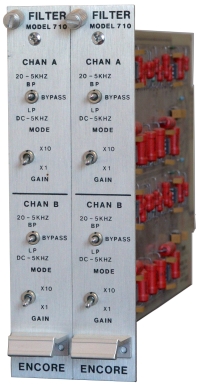

MODEL 710 28-CHANNEL BANDPASS/LOWPASS FILTER



Description


The Model 710 28-channel bandpass/lowpass filter is used in conjunction with test systems and has an attenuation of 48dB per octave. Frequency cut-offs can be customized.

Specifications

Signal input: ±10V peak max.
Input impedance:
100 Ohms
Signal output:
±10V peak, up to ±5 MA peak load
Output impedance:
One Ohm max.
Cut off frequencies:
(Switch selectable)
                                    Lowpass: DC to 100Hz (-3dB)
                                    Bandpass: 20Hz to 100Hz
                                    Bypass: DC to 100 KHz
Attenuation:
48 dB per octave (eight pole)
Gain (passband):
One or 10 (switch selectable)
Input power (28 ch.):
±15VDC @ 0.5A, regulated
Mechanical

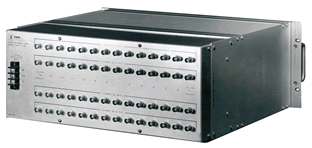

: 19"W x 7"H x 15"D 14-slot rack (total 28 channels)
