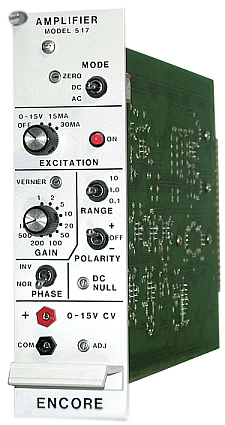

MODEL 517-003 GENERAL PURPOSE INSTRUMENTATION AMPLIFIER
Description
The Model 517-003 instrumentation amplifier module is designed
for use with accelerometers, strain gages and with Eddy-current
proximity sensors. It features excitation which is switch selectable
for CC or CV.
Specifications
Gain: Ten calibrated positions, 1 to 1000 accurate
to ±2% in log steps plus gain vernier
Bandwidth: DC to 25kHz (-3dB) with selectable
AC-coupled low frequency cut offs at 16Hz
Excitation: Switch selectable
Constant current |
15mA, ±0.5% 30mA, ±0.5% |
||||
Constant voltage |
0 to 15VDC @125mA adjustable plus monitor test points |
||||
Noise |
< 1 mVRMS | ||||
Drift |
Within 10uV for 24 hours after two hour warmup |
Input impedance: 100Kohms, AC coupled;
>10Megohms, DC coupled
Zero suppression: Front panel adjustable trimpot
with
± 0.1, 1.0, and 10VDC full scale settings, accurate to
±5% of full scale range setting
Signal phase: Either inverting or non-inverting
Noise: Ten microvolts RMS, RTI @Gain=1000
Output: ±10V @5mA max.
Power: 115V AC ±10%, 50/60Hz
Mechanical: Model 4007-131 rack, 19”W x 7”H x 16”D;
Model 819-003 power supply (modular)
